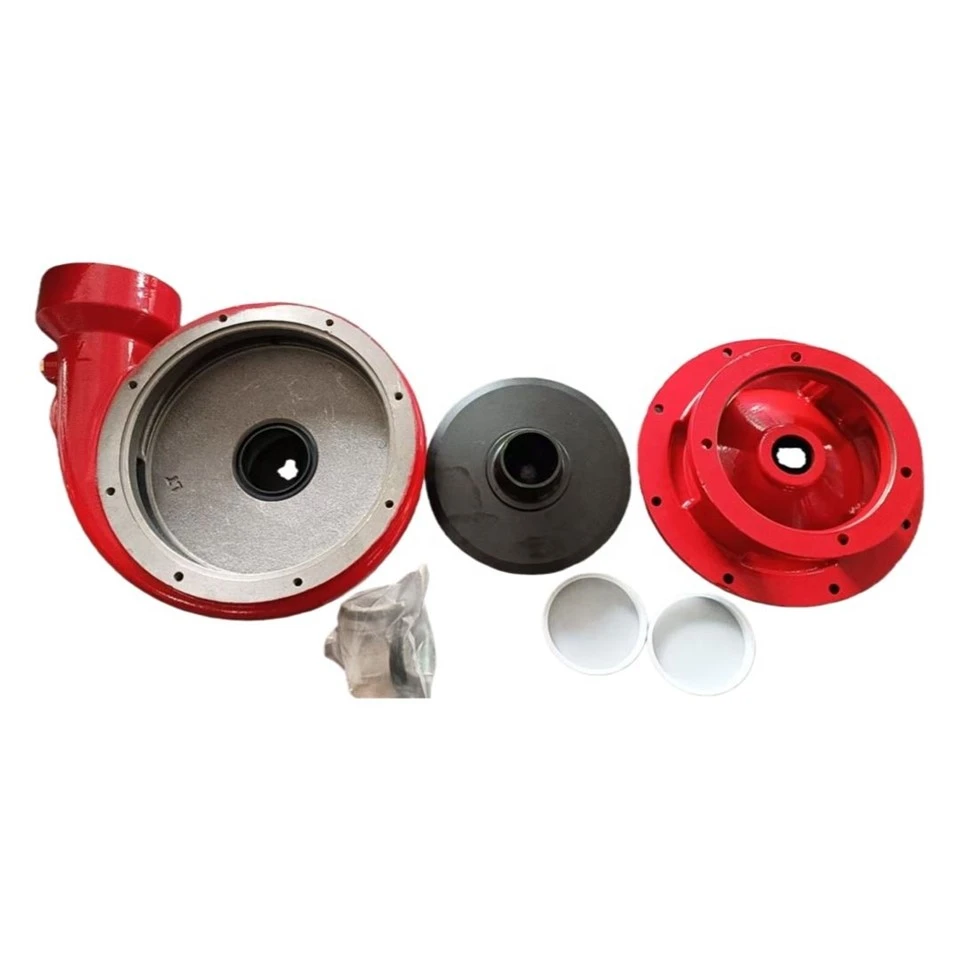

3-inch Cast Iron Pump Casing

The 3-inch Cast Iron Pump Casing is the core shell component of centrifugal pumps, sewage pumps and other hydraulic machinery, responsible for converting the kinetic energy output by the impeller into pressure energy and guiding the medium to flow towards the outlet pipeline. 3 inches (DN80) is a common diameter for small and medium-sized pump sets, with a flow rate range of 20–100 m³/h and a head of 10–50 m. Our pump casing is made of HT250 (GG25) gray cast iron, which is the most mature casing material in the general pump industry - with good casting fluidity, excellent vibration reduction performance, moderate price, and the ability to ensure dimensional stability during long-term use through aging treatment. The flow channel of the pump casing is optimized based on the hydraulic model to reduce vortex and impact losses. The flange surface is finely processed, and the flatness of the sealing surface is ≤ 0.05 mm, ensuring the assembly accuracy with the motor bracket and bearing body.

3-inch Cast Iron Pump Casing​ As a general replacement part, it can be compatible with the following common pump types:
IS type single-stage single-suction centrifugal pump: IS80-65-160, IS80-50-200, etc.
IH type chemical centrifugal pump: IH80-65-125, IH80-50-200, etc.
IR type hot water pump: IR80-65-160, IR80-50-200, etc.
ZS type horizontal direct-connected pump: ZS80-65-160/18.5, etc.

Typical application scenarios:
Building water supply: District booster stations, secondary water supply equipment
Agricultural irrigation: Pump station renovation, sprinkler irrigation system
Industrial circulation: Cooling water circulation, boiler feed water
Light industry wastewater discharge: Factory wastewater lifting, domestic sewage
Fire protection system: Replacement parts for fire pump sets

Customized Services:
Flange Standards: GB, ANSI, DIN, JIS can all be customized
Pressure Rating: PN10 / PN16 / PN25 / Class 125 / Class 150
Surface Treatment: Epoxy paint, hot-dip galvanizing, plastic coating, untreated bare parts
Material Upgrade: Can be upgraded to QT500 ductile iron (tensile strength ≥ 500 MPa) or ZG230-450 cast steel
Special Flow Channels: Flow channel profiles can be customized according to the pump hydraulic model provided by the customer
Brand Marking: Can cast OEM brand LOGO or model marking

Q2: What is your minimum order quantity?
Answer: The minimum order quantity is 1 set (stock model or custom order). Bulk orders (more than 5 units) are eligible for a discount.
Q3: Which payment methods are supported?
Answer: T/T (30% deposit, balance before shipment).
Letter of Credit (irrevocable, accepted by major banks).
Western Union/Paypal (for small orders <$5,000).
Q4: How long is the delivery time?
Answer: Inventory pumps: 7 working days (from factory, standard specifications).
Customized pumps: 40 working days (including design, casting and testing).
Q5: What materials need to be provided for the quotation?
A: Flow rate (m³/h); Head (m); Medium; Solid content; pH value;
Maximum particle size (mm); Slurry density; Voltage (V); Frequency (Hz); Additional information.
Q6: Are OEM parts available?
Answer: Yes, we offer complete OEM/ODM support, including:
Material upgrades: Cr27-Cr30, natural rubber or polyurethane lining.
Design modifications: Impeller channels, sealing systems (packing and mechanical).
Performance adjustments: Efficiency optimization for specific slurry types.
Branding: Laser engraving or casting your logo.
