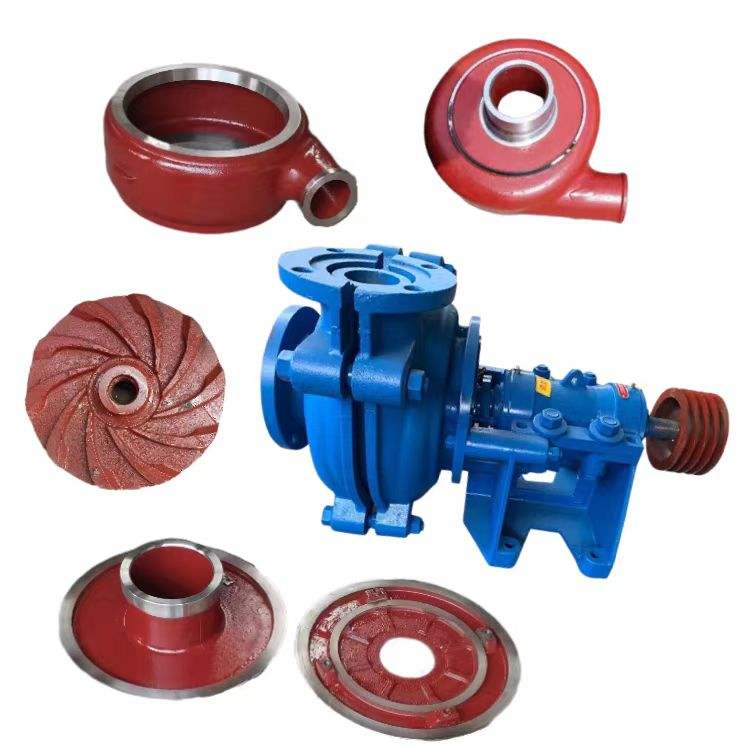

High-chromium Alloy Turbine Blades

In industrial turbomachinery (slurry pumps, dredging pumps, agitators, cyclones), the blades are the core working components that directly "consume wear". When the medium contains sharp particles such as quartz sand, slag, and tailings, the average monthly wear of ordinary cast iron blades can reach 2–3 mm. High-manganese steel blades, under weak impact conditions, have insufficient work hardening effect and poor wear resistance. High-Chromium Alloy Turbine Blades are made of high-chromium white cast iron, which can effectively resist the cutting and erosion by solid particles. Combined with quenching + reheat treatment, the overall hardness is stable at HRC 58–64, balancing high wear resistance and impact toughness.

1. Widely used in industries such as mining, metallurgy, power, coal, chemical engineering, and construction for transporting abrasives or corrosive slurries.
2. Interchangeable high-maintenance metal or compression elastomer liners, thus serving as the impeller.
3. Three sealing type options: gland packing seal, discharge port seal, and mechanical seal.
4. Excellent wear resistance and easy maintenance.

High-Chromium Alloy Turbine Blades can be precisely matched to the following mainstream models according to customer requirements:
Warman AH Series: Full range of impeller codes such as 1.5/1B-AH, 2/1.5B-AH, 3/2C-AH, 4/3C-AH, 6/4D-AH, 8/6E-AH, etc. (E4110, E4130, E4147, etc.)
ZJ / ZJB Series: Various models of impellers such as 50ZJ, 100ZJ, 150ZJ, 200ZJ, 300ZJ (A50, A46, A42, A39, A36, etc.)
SP / SPR Vertical Submersible Pumps: 40PV-SP, 65QV-SP, 100RV-SP, 150SV-SP, 300TV-SP, etc.
Dredging Ship Sand Pump: Large-scale dredging impellers such as 6/4E, 8/6E, 10/8E, 12/10F, 14/12G, etc.

Typical application scenarios:
Mines tailings: Iron concentrate, copper ore, lithium ore, molybdenum ore tailings transportation (pH 4–9, containing quartz sand 60%+)
Power plant ash and slag: Coal slurry, desulfurization gypsum slurry, water quenching of furnace bottom slag
Coal preparation plant: Heavy media coal slurry, heavy media suspension
River dredging: River sand, lake sand, mixed slurry of shells
Chemical slurry: Phosphate ore slurry, potassium salt ore slurry, titanium dioxide slurry

Customized Services:
Design based on original blade CAD drawings or physical samples: 1:1 replication or optimization of design
Reverse measurement: Send the worn blade sample, we will scan and model it + conduct material analysis, and reverse calculate the original dimensions
Material upgrade: Standard Cr26 → Cr28 → Cr28+NiHard → High chromium alloy + tungsten carbide cladding composite layer
Hydraulic optimization: Based on CFD simulation, optimize the blade outlet angle, wrap angle, and flow channel profile, achieving energy savings of 8–15%
Special operating conditions: High-temperature resistant type (≤350°C), corrosion-resistant type (duplex stainless steel A33), ultra-fine particle type (polyurethane coating)
Quality control documents: Each batch of shipment comes with material report (spectroscopy analysis), hardness test report, dynamic balance report, size inspection report, ultrasonic flaw detection report.
Packaging and logistics: Single-piece foam + wooden box packaging, standard fumigation wooden boxes for batch exports, global sea/air transportation.

Q1: What is the range of your products?
Answer: We produce heavy-duty slurry and dredging pumps, including:
Slurry pumps: Used in mining, mineral processing and tailings.
Dredging pumps: Used for river/sand extraction and dredging.
Desulfurization pumps: For the flue gas desulfurization system in power plants (Ph 2-13).
Ocean dredging pumps: With corrosion-resistant design for seawater.
Custom industrial pumps: Designed specifically for abrasives, high-solid or corrosive media.
Key specifications: Flow rate up to 10,000 m³/h, head up to 150m, solids content ≤ 80% by weight.
Q2: What is your minimum order quantity?
Answer: The minimum order quantity is 1 set (stock model or custom order). Bulk orders (more than 5 units) are eligible for a discount.
Q3: Which payment methods are supported?
Answer: T/T (30% deposit, balance before shipment).
Letter of Credit (irrevocable, accepted by major banks).
Western Union/Paypal (for small orders <$5,000).
Q4: How long is the delivery time?
Answer: Inventory pumps: 7 working days (from factory, standard specifications).
Customized pumps: 40 working days (including design, casting and testing).
Q5: What materials need to be provided for the quotation?
A: Flow rate (m³/h); Head (m); Medium; Solid content; pH value; Maximum particle size (mm); Slurry density; Voltage (V); Frequency (Hz); Additional information.
