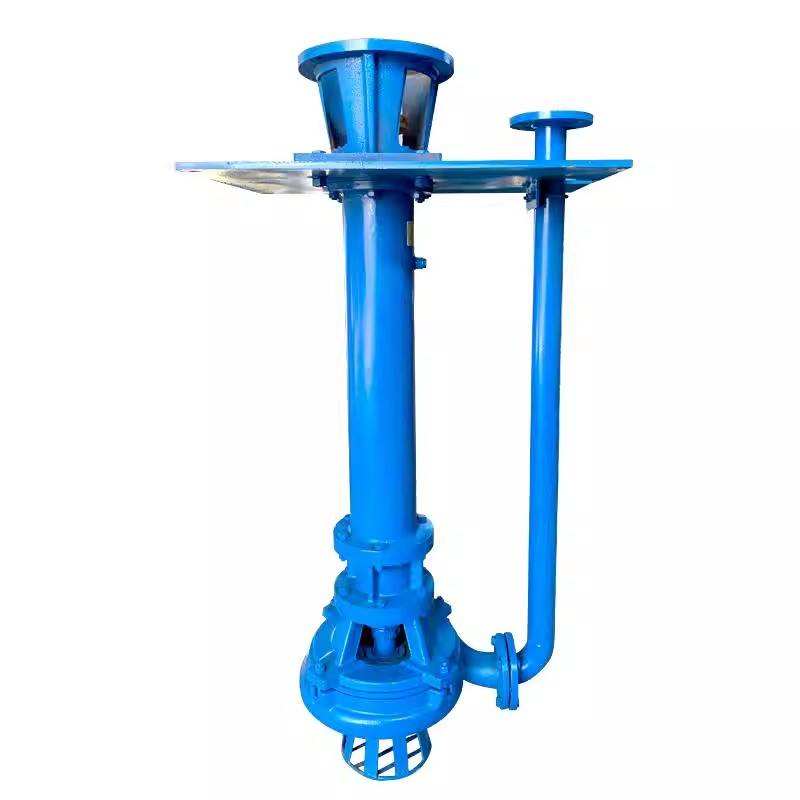

SP Type Vertical Submersible Sewage Pump is a series of vertical centrifugal submersible pumps - the pump body is vertically inserted into the pool or pit, the impeller is submerged in the medium to work, and the motor is located above the liquid surface and drives the underwater impeller through a long shaft. Its core feature is the design without a shaft seal: no need for any shaft seal or shaft seal water, which fundamentally eliminates the leakage of slurry and ensures normal operation even under conditions of insufficient suction volume.

Products features

Vertical cantilever structure: The pump inlet is vertically downward, and the outlet is vertically upward on the other side of the pump. A heavy-duty cantilever shaft design is adopted (cantilever shaft design), with sufficient bearing, shaft, and housing dimensions to avoid the problem of the cantilever shaft operating in the critical speed zone.
Zero leakage without seals: No need for any seals or seal water. Submersible operation under liquid immersion. It eliminates slurry leakage at its source, without the need for an additional sealing water device, saving construction costs and meeting environmental protection requirements.
Double suction semi-open impeller: Adopting a high-capacity double suction semi-open impeller design (double suction semi-open impeller), it can pass through large particles. Wear-resistant alloys / polyurethane / molded elastomer impellers can be interchanged.
Optional vortex impeller and agitator: Optional recessed impeller (recessed impeller) for handling large-sized materials; optional suction agitator (suction agitator) to maintain solid suspension.

Selection criteria and customized services

Selection decision for SP vs SPR:
If the medium is abrasive coarse-grained slurry (such as ore slurry, tailings, coal slime) → SP type (high-chromium alloy Cr26/Cr28 hard metal)
If the medium is corrosive + abrasive slurry without sharp edges (such as chemical slurry, desulfurization slurry) → SPR type (rubber lining)
If the medium has both strong abrasion and corrosion → SPR rubber-lined type is better
Selection of impeller type:
Standard double-suction semi-open impeller → for coarse-grained slurry (recessed impeller) → for handling large-sized materials
With agitator → to maintain solid suspension and prevent sedimentation
Custom service: Submersible depth customization (up to 4 m), material upgrade (Cr28 ultra-high chromium/dual-phase steel/polyurethane), special flange standards (ANSI/DIN/GB), belt drive/straight shaft drive optional, OEM brand marking, complete skid-mounted unit (pump + motor + base + belt pulley cover).

Application scenario

SP Type Vertical Submersible Sewage Pump With its characteristics of "zero leakage due to no shaft seal + vertical submersible design + strong capacity for passing coarse particles", it performs exceptionally well in the following industrial scenarios:
Mining and Metallurgy: Grinding machine discharge ponds, tailings ponds, sedimentation ponds, mineral processing, tailings transportation
Coal Industry: Coal slurry ponds in coal washing plants, coal slurry transportation, coarse particle slurry in coal selection workshops
Electric Power Industry: Power plant ash and slag ponds, fly ash transportation, desulfurization slurry ponds
Building Materials Industry: Raw slurry in cement plants, glaze slurry in ceramic plants, quartz mortar in glass plants
Environmental Protection Department: Sludge ponds in sewage treatment plants, landfill leachate ponds, environmental desulfurization
Chemical Industry: Corrosive slurry, phosphoric acid slurry, chemical wastewater ponds
Tunnels and Foundation Pits: Tunnel drainage, foundation pit drainage, construction water accumulation
Sawing and Dredging: Sand yards' slurry collection ponds, bottom drainage of dredging vessels
Metallurgical Industry: Melting furnace slag slurry, non-ferrous metal slurry
