The medium-high flow mixed-flow pump is a type of oblique-flow pump that lies between a centrifugal pump and an axial-flow pump. The blades of its impeller are inclined. When water enters the impeller, it is simultaneously subjected to centrifugal force and axial lift, and then flows out obliquely. This structure enables it to have the medium head capacity of a centrifugal pump and the large flow characteristic of an axial-flow pump - the single-unit flow can reach 200–3000 m³/h, with a head of 3–25 m, precisely covering the gap where centrifugal pumps struggle and axial-flow pumps are too high for "flow being too large and head being too low". According to its structure, it can be classified as a volute type (HW type, single-stage single-suction, similar to an enlarged centrifugal pump) and a guide vane type (HL type, single-stage single-suction or double-suction, with a guide vane body, having higher efficiency). According to its installation form, it can be classified as horizontal, vertical and inclined, and can flexibly adapt to the space of the pump room.

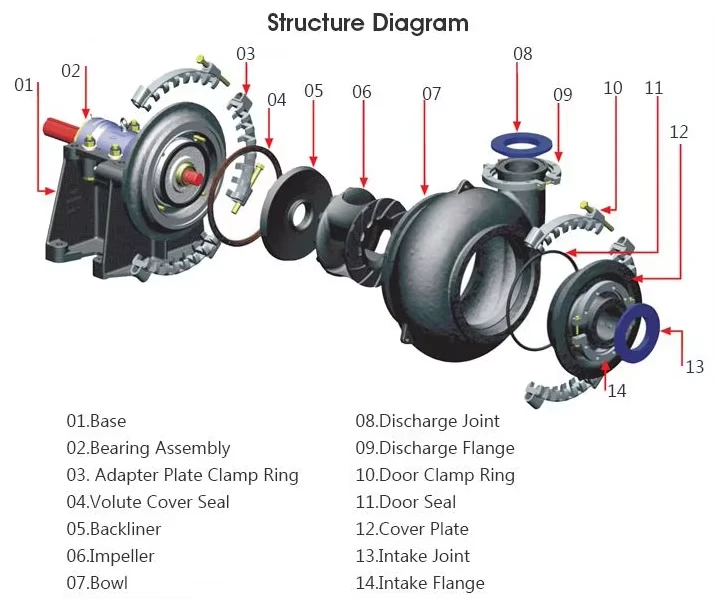

Product structure diagram
Oblique impeller: The outlet angle of the blades is 20° - 45°, which lies between the centrifugal pump (radial) and the axial-flow pump (axial). The flow channel is spacious and less prone to clogging. The impeller material is standard HT250, and it can also be selected as QT500, ZG cast steel, or SS304/SS316.
Pump body form: Conical (HW) - simple structure, easy maintenance, low cost, suitable for small and medium flow; Guide vane type (HL) - with guide vane body to recover kinetic energy, high efficiency of 3 - 5%, suitable for medium and large pumping stations.
Shaft and bearings: Horizontal type has rolling bearings at both ends (grease or thin oil lubrication); Vertical type uses a combination of thrust bearings and guide bearings to withstand axial water thrust and rotor weight.
Sealing type: Packing seal (standard, with water seal ring flushing) or mechanical seal (for clean water/wastewater); For vertical type, the shaft seal is above the water surface, reducing the risk of leakage.
Installation form: Horizontal (simple foundation, convenient maintenance), vertical (small footprint, requires the pump room floor to sink), inclined (installed on a slope, short inlet and outlet flow channels, less civil engineering work).
Drive method: Direct connection (motor + coupling), belt drive (small power adjustable speed), diesel engine drive (for flood emergency).
Product parameters
| Flow rate | 4000 cubic meters per hour |
| Maximum lift height | 15 meters |
| Applicable temperature | 5-80°c |
Application scenario
Medium-sized high-flow mixed-flow pumps, characterized by "large flow, moderate head, and flat efficiency curve", are the main models in the following fields:
Agricultural water conservancy: Large and medium-sized irrigation districts for water lifting and drainage, cross-regional water diversion, drainage of low-lying polders, circulation of rice and shrimp fields
Municipal flood control: Urban rainwater pumping stations, river drainage, strong drainage of underground plazas, pumping of tunnel water accumulation
Power plant cooling: Circulating water of condensers, makeup water for cooling towers (replacing some axial flow pumps, with more stable head)
Aquaculture: Water replacement in large-scale fish farms, circulation in shrimp ponds, oxygenation and water replacement in sea cucumber ponds
Industrial circulation: Turbid circulating water in steel mills, cooling water in chemical plants, white water recovery in paper mills
Ecological water conservancy: River ecological water replenishment, water circulation in wetland parks, water pumping for treating black and odorous water bodies
Supplier Introduction
CZME is a world-leading professional manufacturer of high-performance pump equipment. Its products are widely applicable to various industries such as mining, construction, environmental protection, and water treatment. The company's main products include slurry pumps, dredging pumps, desulfurization pumps, offshore dredging pumps, and various industrial pump equipment, which are specifically designed for transporting slurries containing solid particles, with high abrasion resistance and strong corrosiveness. With profound technical accumulation in the fields of slurry transportation and wastewater treatment, CZME has gained the trust of customers all over the world and has become a reliable supplier for long-term and stable cooperation.
Products Description
How can I place an order online?
Send us an email or message (WhatsApp/WeChat). Please feel free to ask any questions - once we confirm the details, we will proceed with processing your order.
Do you have a minimum order quantity?
The minimum order quantity is 1 set.
Which payment methods are accepted?
Wire transfer, letter of credit, Western Union, PayPal, Alibaba Trade Guarantee.
What are the shipping terms?
Ocean shipping, air shipping and express shipping are all available.
What is the delivery time?
After payment confirmation, delivery usually takes 3-7 working days, depending on the quantity of your order.
What guarantees do you have?
We offer one-year warranty for all products, except for wearables. If a product fails due to manufacturing defects, we will repair or replace it free of charge. Damage caused by improper use or human error is not covered by the warranty.
Can I purchase parts separately?
Yes, all pump spare parts can be purchased separately.
