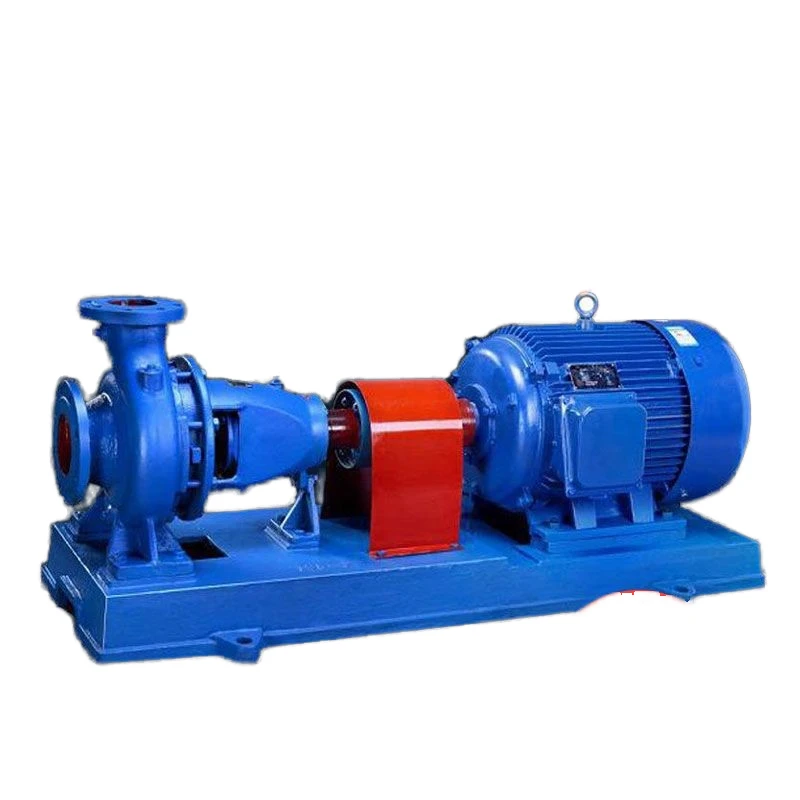

Single Stage Horizontal Centrifugal Pump

Single-stage horizontal centrifugal pump is the most widely used pump type in both industrial and civil fields. It adopts a single-stage impeller, horizontal installation, axial suction, and radial discharge structure. The pump body is of a volute type, and the impeller is a closed single suction type. The motor is directly driven through a coupling. Its core advantage is the "rear door" design - during maintenance, only the middle section of the coupling needs to be removed, and the rotor components can be completely withdrawn from the rear of the pump body. The inlet and outlet pipelines and the motor remain completely stationary, significantly reducing the downtime.

Post-opening structure: The pump body and pump cover are separated from the back of the impeller. During maintenance, there is no need to disassemble the pump body, piping, or motor. Just remove the middle section of the coupling, and the rotor components can be fully withdrawn for maintenance.
Casing-type pump body: The flow channel is smooth, with low hydraulic loss, and the efficiency can reach 70–85%. The bottom of the pump body is equipped with a drain screw for winter anti-freezing.
Closed impeller: Single suction closed structure, with 5–7 blades. The twisted blades optimize the hydraulic performance, resulting in high efficiency and low noise.
Hinged rotor: The impeller hingedly installed on the thickened shaft, and the radial load is borne by the heavy-duty bearing assembly, ensuring smooth operation.
Two options for shaft seals:

IS Type (Water Pump): It is used for transporting clean water or liquids with physical and chemical properties similar to clean water. The medium temperature should be ≤ 80℃, and the solid content should be < 0.1%. It is suitable for industrial water supply and drainage, urban water supply, air conditioning circulation, fire protection pressurization, and agricultural irrigation, etc. The standard material is HT200 cast iron, and QT500 ductile iron or stainless steel can be selected.
IH Type (Chemical Pump): It is used for transporting corrosive liquids. The medium temperature should be ≤ 105℃, and the suction pressure should be ≤ 0.6 MPa. The flow components are Standard configuration SS304/SS316L stainless steel, with mechanical seals, and are suitable for chemical, pharmaceutical, food, and environmental protection industries.
IR Type (Hot Water Pump)： It is used for transporting hot water or hot clear water. The medium temperature should be ≤ 130℃, and the shaft seal is equipped with a cooling water jacket, and mechanical seals + cooling water circulation. It is suitable for boiler feed water, heating circulation, and waste heat recovery, etc.

Single-stage horizontal centrifugal pump: With the characteristics of "universal, reliable and easy to maintain", it is widely used in the following fields:
Industrial water supply and drainage: Water supply for factory production and daily life, process cooling water circulation, workshop drainage
Municipal water supply: Water supply pumps for water treatment plants, booster pumps for residential areas, secondary water supply equipment
HVAC: Central air conditioning chilled water/cooling water circulation, heat exchange station circulation pumps
Fire protection system: Indoor and outdoor fire hydrant pumps, sprinkler pumps, water curtain pumps
Agricultural irrigation: Field irrigation, sprinkler systems, channel water conveyance
Chemical process: IH type for transportation of acid-base liquids, solvents, chemical reagents
Boiler accessories: IR type for water supply of hot water boilers, heating circulation

CZME is a world-leading professional manufacturer of high-performance pump equipment. Its products are widely applicable to various industries such as mining, construction, environmental protection, and water treatment. The company's main products include slurry pumps, dredging pumps, desulfurization pumps, offshore dredging pumps, and various industrial pump equipment, which are specifically designed for transporting slurries containing solid particles, with high abrasion resistance and strong corrosiveness. With profound technical accumulation in the fields of slurry transportation and wastewater treatment, CZME has gained the trust of customers all over the world and has become a reliable supplier for long-term and stable cooperation.

Question: Can you provide OEM or ODM services?
Answer: Yes, we have extensive experience in both OEM and ODM services. You can provide the relevant logos or product design concepts, and we will fully cooperate to meet your requirements.
Question: What is your delivery time?
Answer: Batch orders can be delivered within 35 to 45 days.
Question: Do your factory and products have any relevant authoritative certifications?
Answer: Yes, our factory has ISO 9001 certification, and the products have CE and ROHS certifications.
Question: Can the logo and packaging be customized?
Answer: Yes.
Question: Can you provide samples?
Answer: Yes, and we will provide you with sample test reports. The samples can be sent to the customer within 10-15 days.
Question: How do you deliver the goods? Can they be sent to the address requested by the customer?
Answer: For full container orders, we can reserve a container for you, or you can ask your freight forwarder to contact us. For partial container orders, you can tell us the delivery address and we will arrange the logistics for the shipment.
