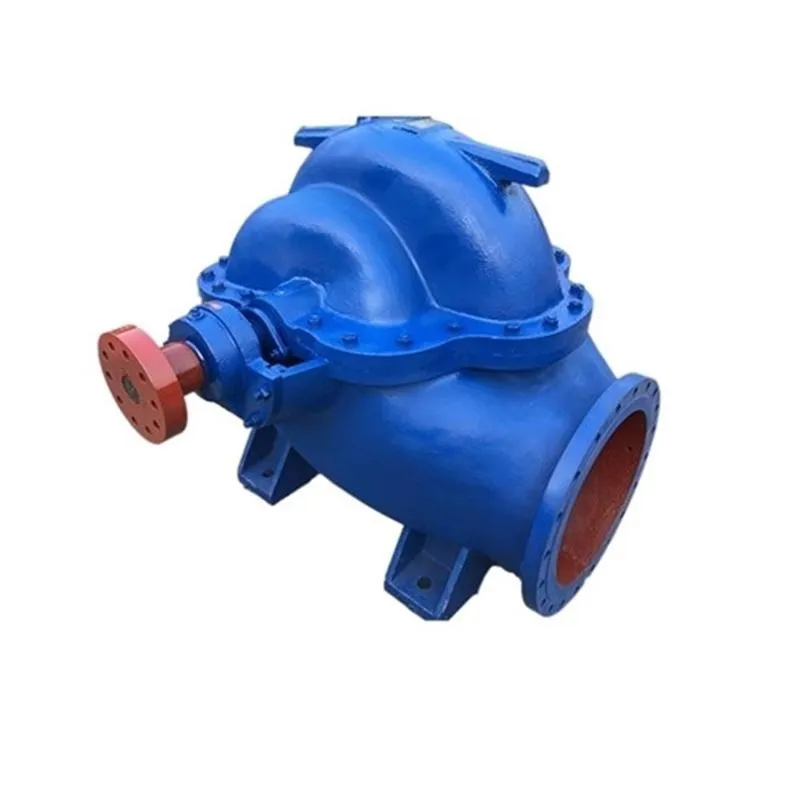

S/Sh Type Turbocharged Double-suction Pump

The S/SH type booster double-suction pump is a single-stage centrifugal pump based on a horizontal mid-open pump casing and double-suction impeller structure. It is specially designed for large-scale systems that require stable pressure and flow for transportation. It perfectly combines the stable operation and convenient maintenance features of dual-suction pumps, as well as the strict requirements for high efficiency and reliability in pressurized conditions. This pump type is the ideal core equipment for projects such as urban secondary water supply, industrial process pressurization, regional heating and cooling systems, and long-distance water transfer, enabling safe, energy-efficient, and long-lasting pressurized transportation.

Compact structure: Beautiful appearance, good stability, easy to install.
Smooth operation: The optimized double-suction impeller reduces the axial force to the minimum, and the excellent hydraulic performance of the blade design, and it is precisely cast. The inner surface of the pump casing and the surface of the impeller are extremely smooth, with remarkable anti-cavitation performance and high efficiency.
Sealing: Select BURGMANN mechanical seal or packing seal. It can ensure no leakage for 8,000 hours of operation. Bearings: Select SKF and NSK bearings to ensure smooth operation, low noise, and long service life.
Installation form: Assembly does not require adjustment. It can be installed in a stand-alone or horizontal manner according to the on-site usage conditions.

The SH type pump is a single-stage double-suction horizontal mid-entry centrifugal pump. It is used for transporting clear water and liquids with physical and chemical properties similar to water. The maximum temperature of the liquid should not exceed 80°C. It is suitable for water supply and drainage in mines, cities, power stations, farmland drainage and irrigation, and various water conservancy projects. Currently, the produced SH type pumps include: 6SH-6, 6SH-6A, 6SH-9, 6SH-9A, 8SH-6, 8SH-9. 8SH-9A, 8SH-L3, 8SH-13A, 10SH-9, 10SH-9A, 10SH-L3, 10SH-L3A,
10SH-19, 10SH-19A, 12SH-6, 12SH-6A, 12SH-68, 12SH-9, 12SH-9A,
12SH-98, 12SH-L3, 12SH-L3A, 12SH-19, 12SH-L9A, 14SH-6, 14SH-6A.
14SH-68, 14SH-9, 14SH-9A, 14SH-98, 14SH-13, 14SH-L3A.

Municipal secondary water supply and regional pressure boosting: Secondary water supply and pressure boosting pumping stations for high-rise building complexes and urban water supply networks, regional water transmission and pressure boosting facilities.
Pressure boosting for industrial processes and circulation systems: Pressure boosting of cooling water circulation systems in factories, pressure-boosting sections in industrial processes, water pressure boosting in thermal power plants and petrochemical plants.
Pressure boosting for large-scale building HVAC (Heating, Ventilation, and Air Conditioning): Main pumps for air conditioning and hot water circulation systems in super-high-rise buildings, commercial complexes, and data centers, pressure boosting pumps for regional energy stations.
Water conservancy projects and regional water diversion: Intermediate pressure boosting pumping stations in long-distance water pipelines, pressure boosting sections in cross-regional water diversion projects.
Irrigation and industrial cleaning: High-pressure water supply for large-scale farmland irrigation systems, water supply power sources for industrial high-pressure cleaning systems.
